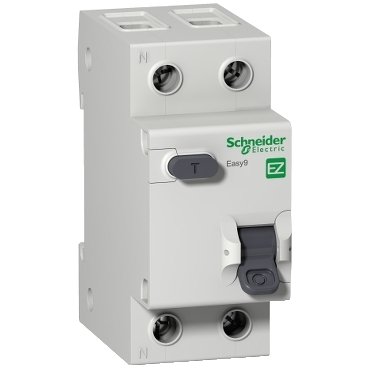

SCHNEIDER Easy9 Disjoncteur différentiel 1P+N 32A 30MA – EZ9D34632

SCHNEIDER Easy9 Disjoncteur différentiel 1P+N 32A 30MA – EZ9D34632

5,800 DA

En stock

UGS : EZ9D34632 Catégorie : Marque :
Fiche technique
Range Easy9
Product or component type Residual current breaker with overcurrent protection (RCBO)
Device short name Easy9 RCBO
Poles 1P + N
Neutral position Left
[In] rated current 32 A
network type AC
Trip unit technology Thermal-magnetic
Curve code C
Earth-leakage sensitivity 30 mA
Earth-leakage protection time delay Instantaneous
Earth-leakage protection class Type AC
Breaking capacity 4500 A Icn at 230 V AC 50 Hz conforming to IEC 61009-1
Device application Distribution
Device location in system Outgoer
[Ue] rated operational voltage 230 V AC 50 Hz
Magnetic tripping limit 5…10 x In
[Ui] rated insulation voltage 500 V
[Uimp] rated impulse withstand voltage 4 kV
Surge current 250 A
Contact position indicator Yes
Control type Toggle
Mounting support DIN rail
9 mm pitches 4
Height 81 mm
Width 36 mm
Depth 66.5 mm
Colour Grey (RAL 7035)
Mechanical durability 8000 cycles
Electrical durability 2000 cycles 230 AC 50 Hz
Connections – terminals Tunnel type terminal (top or bottom) 1…25 mm² rigid
Tunnel type terminal (top or bottom) 1…16 mm² flexible
Tightening torque 2 N.m top or bottom
Earth-leakage protection Integrated
Standards IEC 61009-1
Product certifications GOST
EAC
Tropicalisation 2
Relative humidity 95 %
Ambient air temperature for operation -25…60 °C
Ambient air temperature for storage -40…70 °C
UGS : EZ9D34632 Catégorie : Marque :
